R-29C Facial Recognition Door Phone
R-29C Facial Recognition Door Phone
  • At a Glance

    Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises;
    Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries;
    Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%;
    Allows both audio and video communication to an IP phone, mobile client, or softphone;
    Enables the ability to remotely control the door/gate;
    Presents information and user navigation options unique to your business;
    Speeds response time to visitors, delivery and service personnel that require access;
  • Physical & Power

    Front panel: Aluminum
    RAM / ROM: 2GB / 16GB
    Display: 7 Inch IPS LCD
    Screen: 7 Inch capacitive touch screen
    Main Camera: 3M pixels, automatic lighting
    Auxiliary Camera: 5M pixels
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz & 125kHz
    Relays ln/out: 3/3
    Microphone: -32dB
    Speaker: 8Ω / 2W
    Bluetooth: Support
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    IP/IK Level: IP65/ IK06
    Installation: Flush-mounted & Wall-mounted
    Flush-mounted DIM: 324x130x60mm
    Wall-mounted DIM: 324x130x33mm
    Working Humidity: 10-90%
    Working Temperature: -20°C – +55°C
    Storage Temperature: -40°C – +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/3″, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
    Video codec: H.264
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 25fps
    Viewing angle: 120*(H)/ 64°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    White LEDs for QR code scanning
    Compatible to 3rd-party video components,
  • Networking and Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Door Entry Feature

    Android OS for any 3rd-party software or customization
    Relays controlled individually by DTMF tones
    Multi-way Unlock: Face, IC/ID Card, PIN and BLE
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
    Business information or a welcome experience for guests
Note: The specification above is for R29C only. To learn about the specification of other models, please download the datasheets at the Download Center.
R27A Door Phone
R27A Door Phone
  • At a Glance

    Vandal resistant body, with numeric keypad;
    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Aluminum
    Camera: 2M pixels, automatic lighting
    Numeric keypad with extra buttons
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz & 125kHz
    Relays out: 3
    Inputs: 3
    Microphone: -40dB
    Speaker: 8Ω / 2W
    Power out: 12V/400mA
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Flush-mounted & Wall-mounted
    Flush-mounted DIM: 280x130x68mm
    Wall-mounted DIM: 280x130x38mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
    Video codec: H.264, H.265
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 30fps
    Viewing angle: 116°(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd-Party-Video components, e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
Note: The specification above is for R27A only. To learn about the specification of other models, please download the datasheets at the Download Center.

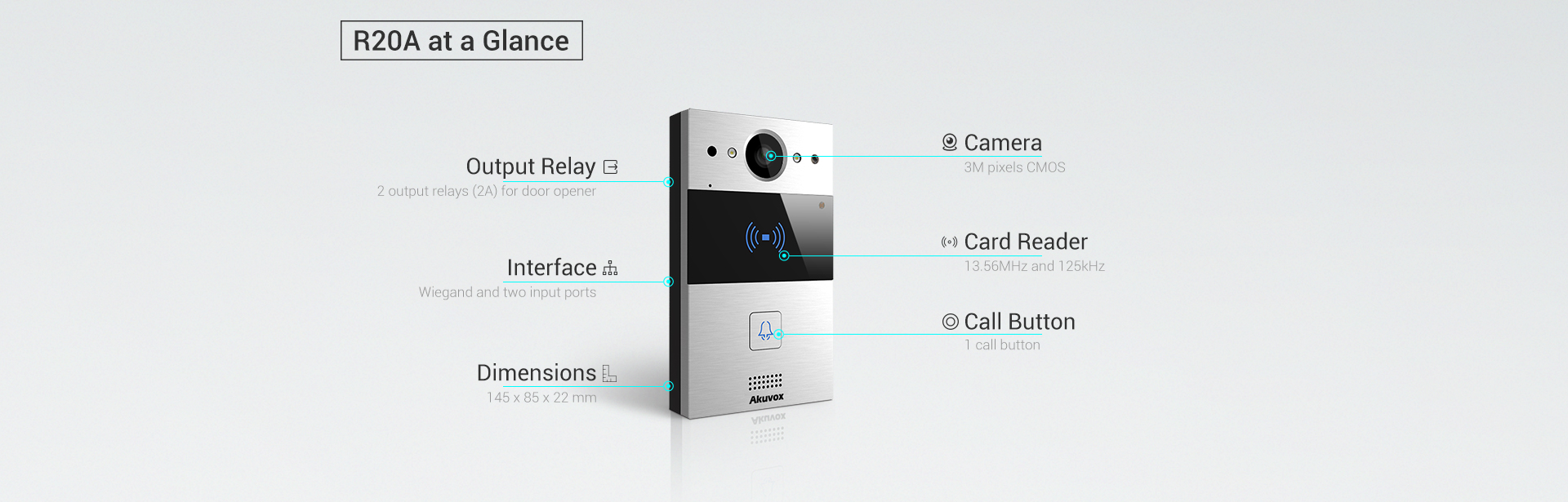

R20A Door Phone
R20A Door Phone
  • At a Glance

    Vandal resistant body, with a flush button;
    Wide-angle camera: 120° (H), 64° (V);
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Aluminum alloy
    Camera: 3M pixels, automatic lighting
    Button: 1 call button
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RF card reader: 13.56MHz & 125kHz
    Relays out: 2
    Inputs: 2
    Microphone: -40dB
    Speaker: 4Ω / 3W
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Flush-mounted or Wall-mounted
    Flush-mounted DIM: 189x120x56.5mm
    Wall-mounted DIM: 145x85x27.5mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +65°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/3”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p
    Video codec: H.264
    Video resolution: up to 1280x720p
    Max. image transfer rate: 720p – 30fps
    Viewing angle: 120°(H) / 64°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd-Party-Video components, e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
Note: The specification above is for R20A only. To learn about the specification of other models, please download the datasheets at the Download Center.

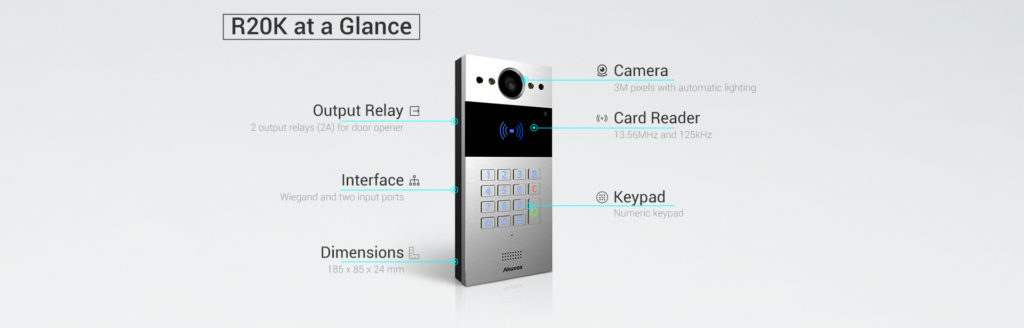

R20K
R20K Compact SIP Video Doorphone
  • Physical & Power

    Front panel: Aluminum alloy
    Camera: 3M pixels, automatic lighting
    Numeric keypad with extra buttons
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RF card reader: 13. 56MHz & 125kHz
    Relays out: 2
    Inputs: 2
    Microphone: -40dB
    Speaker: 42Ω / 3W
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power- over – Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust- proof: IP65
    Installation: Flush-mounted or Wall- mounted
    Flush-mounted DIM: 226x108x52mm
    Wall- mounted DIM: 185x85x24mm
    Working Humidity: 10 ~ 90%
    Working Temperature: -30°C ~ +65°C
    Storage Temperature: – 40°C~ + 70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In- band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/3”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p
    Video codec: H.264
    Video resolution: up to 1280x720p
    Max. image transfer rate: 720p -30fps
    Viewing angle: 120°(H) / 64°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd- Party video components, e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto- night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP,HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP. ARP
  • Deployment & Maintenance

    Auto- Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office doorphone with on-site or hosted |P-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
Note: The specification above is for R20K only. To learn about the specification of other models, please download the datasheets at the Download Center.

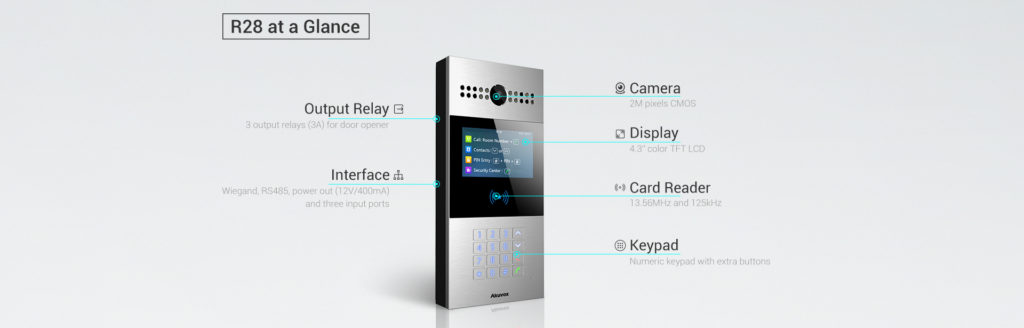

R28 SIP video doorphone with a numeric keypad
R28 SIP video doorphone with a numeric keypad
  • At a Glance

    Vandal resistant body, with flush buttons;
    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Aluminum
    Display: 4.3 Inch, color TFT LCD
    Camera: 2M pixels, automatic lighting
    Numeric keypad with extra buttons
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz & 125kHz
    Relays out: 3
    Inputs: 3
    Microphone: -40dB
    Speaker: 8Ω / 2W
    Power out: 12V/400mA
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Flush-mounted & Wall-mounted
    Flush-mounted DIM: 280x130x68mm
    Wall-mounted DIM: 280x130x38mm
    Working Humidity: 10~90%
    Working Temperature: -40°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
    Video codec: H.264, H.265
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 30fps
    Viewing angle: 116°(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd-Party-Video components, e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
Note: The specification above is for R28A only. To learn about the specification of other models, please download the datasheets at the Download Center.

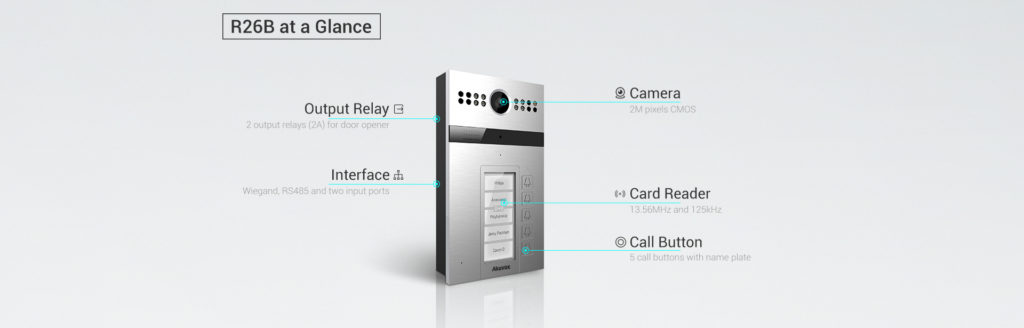

R26B Multi-button Doorphone
R26B Multi-button Doorphone
  • At a Glance

    Vandal resistant body, 5 call buttons with name plate;
    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Aluminum
    Camera: 2M pixels, automatic lighting
    Buttons: 5 call buttons with name plate
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz & 125kHz
    Relays out: 2
    Inputs: 3
    Microphone: -40dB
    Speaker: 8Ω / 2W
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Wall-mounted
    Wall-mounted DIM: 196x110x39.5mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833),SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p
    Video codec: H.264, H.265
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 30fps
    Viewing angle: 116°(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd-Party-Video components,e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Auto-night mode with LED illumination
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
Note: The specification above is for R26B only. To learn about the specification of other models, please download the datasheets at the Download Center.

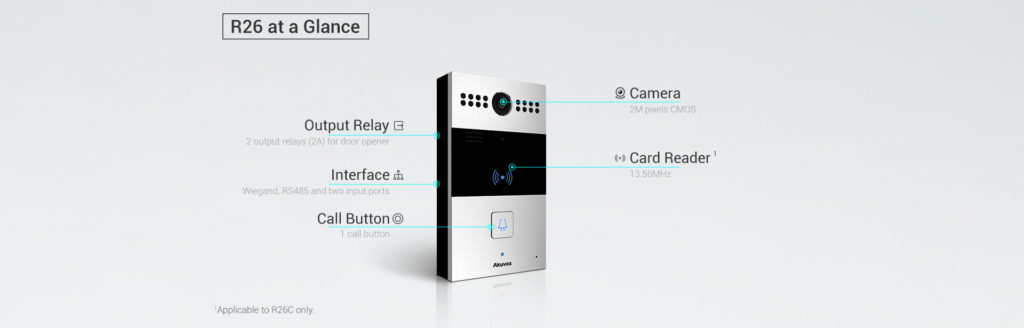

R26
R26 SIP Video Doorphone
  • At a Glance

    Vandal resistant body, with a flush button;
    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Aluminum
    Camera: 2M pixels, automatic lighting
    Button: 1 call button
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz
    Relays out: 2
    Inputs: 3
    Microphone: -40dB
    Speaker: 8Ω / 2W
    Power out: 12V/400mA
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Flush-mounted or Wall-mounted
    Flush-mounted DIM: 213x124x68mm
    Wall-mounted DIM: 190x110x40mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833),SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p
    Video codec: H.264, H.265
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 30fps
    Viewing angle: 116°(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd-Party-Video components,e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
Note: The specification above is for R26C only. To learn about the specification of other models, please download the datasheets at the Download Center.
R23 One-button Doorphone
R23 One-button Doorphone
  • At a Glance

    Vandal resistant body, with a flush button;
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
  • Physical & Power

    Front panel: Aluminum
    Button: 1 call button
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz
    Relays out: 2
    Inputs: 3
    Microphone: -40dB
    Speaker: 8Ω / 2W
    Power out: 12V/400mA
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Flush-mounted or Wall-mounted
    Flush-mounted DIM: 213x124x68mm
    Wall-mounted DIM: 190x110x40mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833),SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Door Entry Feature

    Relays controlled individually by DTMF tones
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
Note: The specification above is for R23C only. To learn about the specification of other models, please download the datasheets at the Download Center.

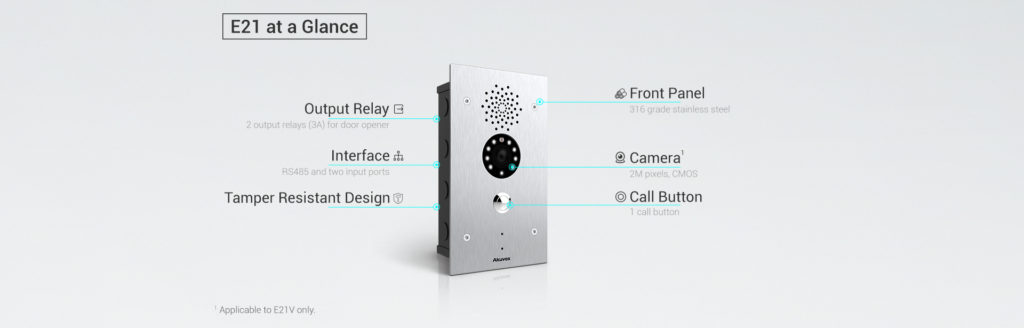

E21 Vandal-resistant Emergency Intercom
E21 Vandal-resistant Emergency Intercom
  • At a Glance

    Vandal resistant body, with a panic button;
    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: 316 grade stainless steel
    Camera: 2M pixels, automatic lighting
    Button: 1 panic button
    Reset: 1 reset button (on board)
    Light sensor: Support
    Infrared sensor: Support
    Relays out: 2
    Inputs: 2
    Microphone: -40dB
    Speaker: 8Ω / 1.5W
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12 ~ 48V DC input (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Flush-mounted
    Flush-mounted DIM: 210x120x61mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833),SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p
    Video codec: H.264, H.265
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 30fps
    Viewing angle: 116°(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd-Party-Video components,e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Target Groups

    Education: universities, campuses, schools
    Logistics & Transportation: airports, parking lots
    Healthcare: hospitals, laboratories
Note: The specification above is for E21V only. To learn about the specification of other models, please download the datasheets at the Download Center.

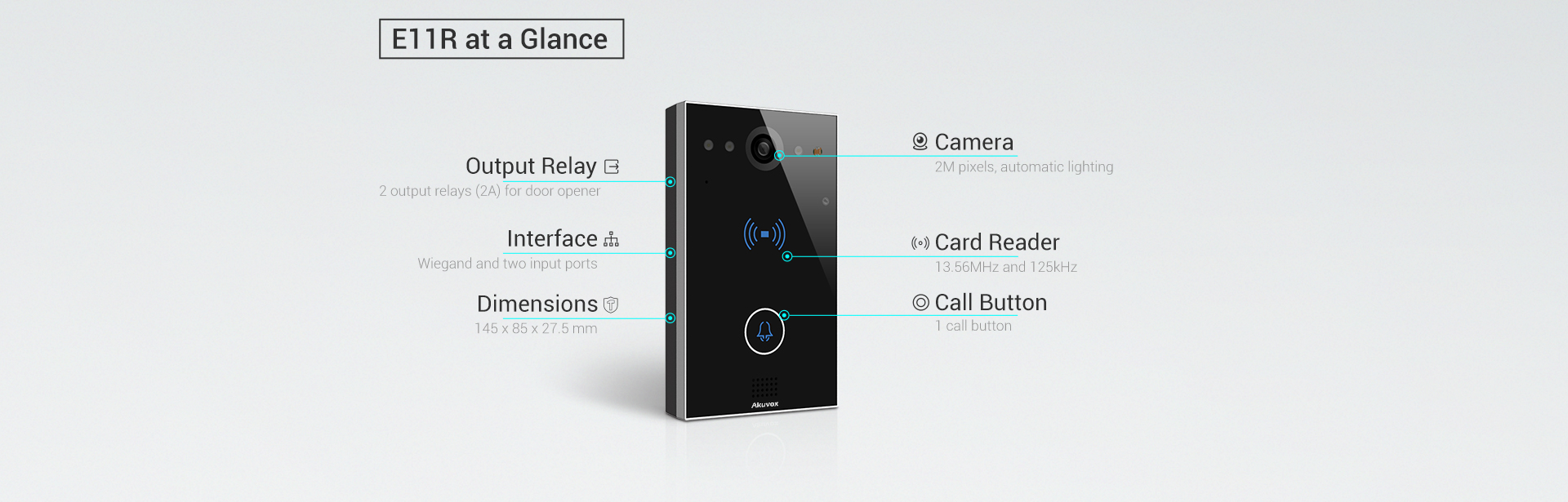

E11R Door Phone
E11R Door Phone
  • At a Glance

    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over- Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Plastic
    Camera.2M pixels, automatic lighting
    Button: 1 call button
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RF card reader: 13. 56MHz & 125kHz
    Relays out: 2
    Inputs: 2
    Microphone: – 40dB
    Speaker: 4Ω / 3W
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power- over- Ethernet
    12V DC connector (if not using PoE)
    Installation: Wall-mounted
    Wall-mounted DIM: 145x85x27.5mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +65°C
    Storage’ Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833),
    SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7″, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p
    Video codec: H.264
    Video resolution: up to 1280x720p
    Max. image transfer rate: 720p – 30fps
    Viewing angle: 116*(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3″- Party- Video components, e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto- Provisioning
    Web management portal
    Web- based packet dump
    Configuration backup/ restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office doorphone with on-site or hosted IP- PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control
Note: The specification above is for E11R only. To learn about the specification of other models, please download the datasheets at the Download Center.

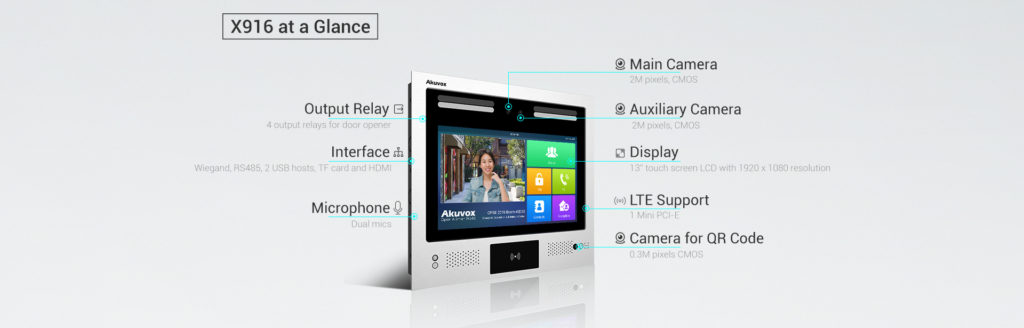

X916 The World's First Android Intercom with Starlight Camera
X916 The World’s First Android Intercom with Starlight Camera
  • At a Glance

    Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes;
    Intuitive interface with color touch display for superior resident and visitor usability;
    13”fully-color touch display provides ultra-wide viewing angles;
    Presents information and user navigation options unique to your business;
    Supports SIP to provide reliable two-way voice & one-way video communication;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front Panel: 316 grade stainless steel
    RAM / ROM: 2GB / 16GB
    Display: 13 Inch IPS LCD
    Main Camera: 2M pixels, with starlight
    Auxiliary Camera 1: 2M pixels
    Auxiliary Camera 2: 0.3M pixels
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz & 125kHz
    Relays out: 4
    Inputs: 4
    Reset button: 1
    USB Interface: 2
    HDMI Interface: 1
    TF Card Slot: 1
    Microphone: 2, -42dB
    Speaker: 2, 8Ω / 2W
    Power out: 12V / 500mA
    Ethernet port: 2xRJ45, 10/100/1000Mbps adaptive
    12~24V DC connector
    Water-proof & Dust-proof: IP65
    Installation: Flush-mounted & Wall-mounted
    Flush-mounted DIM: 383.9×339.15×63.7mm
    Wall-mounted DIM: 383.9×339.15×48.95mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.8”, CMOS for main camera
    Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
    Video codec: H.264
    Video technology: HDR
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 30fps
    Viewing angle: 115°(H) / 63°(V)
    Compatible to 3rd-Party-Video components, e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
Note: The specification above is for X916S only. To learn about the specification of other models, please download the datasheets at the Download Center.
